instro is a Python library with the following objectives:

Accelerate the authoring of tests which rely on hardware instruments.
Provide abstractions that allow code reuse across various instrument models, so you can swap vendors without rewriting your test.
Define entry points for creating instrument interfaces and drivers that integrate with the library.
When you want to capture the data, offer low-code publishing to a file, a custom destination, or Nominal tools like Connect and Core.

It is a Python forward framework that should be accessible to engineers new to Python but also extensible and useable by engineers who are Python savvy.

Problem Space: Before and After

Before: a different SDK for every vendor

Here’s what’s required to read analog data from two different DAQ vendors using their native SDKs. Each device has its own API, configuration sequence, and data-handling quirks, and the acquisition logic is tangled together with the code that ships the samples somewhere.

LabJack T-Series Devices

import time
from labjack import ljm
import nominal as nm

DATASET_RID = "<your dateset rid>"

# Initial Nominal Config
client = NominalClient.from_profile("default")
dataset = client.get_dataset(DATASET_RID)

# Set up labjack
aScanList = ljm.namesToAddresses(len(["AIN0", "AIN1"]), ["AIN0", "AIN1"])[0]
handle = ljm.openS("ANY", "ANY", "ANY")
info = ljm.getHandleInfo(handle)
deviceType = info[0]
if deviceType == ljm.constants.dtT4:
    aNames = ["STREAM_SETTLING_US", "STREAM_RESOLUTION_INDEX"]
    aValues = [0, 0]
else:
    ljm.eWriteName(handle, "STREAM_TRIGGER_INDEX", 0)
    ljm.eWriteName(handle, "STREAM_CLOCK_SOURCE", 0)
    aNames = ["AIN0_RANGE", "AIN1_RANGE", "STREAM_RESOLUTION_INDEX"]
    aValues = [10.0, 10.0, 0]
    if deviceType == ljm.constants.dtT7:
        aNames.extend(
            ["AIN0_NEGATIVE_CH", "STREAM_SETTLING_US", "AIN1_NEGATIVE_CH"]
        )
        aValues.extend([199, 0, 199])
numFrames = len(aNames)
ljm.eWriteNames(handle, numFrames, aNames, aValues)

# Start the labjack. Read 500 samples 10 times
ljm.eStreamStart(handle, 500, len(aScanList), aScanList, 5000)
with dataset.get_write_stream() as core_stream:
    for _ in range(10):
        # Read from Labjack
        readings = ljm.eStreamRead(handle)
        samples = readings[0]

        # Arrange data and send to Nominal Core
        timestamp = time.time()
        samples_per_channel = int(len(samples) / len(aScanListNames))
        dt = 1/5000
        t0 = timestamp - dt * len(samples_per_channel)
        for i, channel in enumerate(aScanListNames):
            core_stream.enqueue_batch(
                channel_name = channel,
                timestamps = [t0 + j * dt for j in range(samples_per_channel)],
                values = [samples[j * len(aScanListNames) : (i + 1) * len(aScanListNames)] for j in range(samples_per_channel)][i],
            )

ljm.eStreamStop(handle)

NI DAQ Devices

import nidaqmx
from nidaqmx.constants import AcquisitionType
import nominal as nm

DATASET_RID = "<your dateset rid>"

# Initial Nominal Config
client = NominalClient.from_profile("default")
dataset = client.get_dataset(DATASET_RID)

with nidaqmx.Task() as task:
    task.ai_channels.add_ai_voltage_chan("Dev1/ai0:1")
    task.timing.cfg_samp_clk_timing(5000.0, sample_mode=AcquisitionType.CONTINUOUS)
    task.start()

    with dataset.get_write_stream() as core_stream:
        for _ in range(10):
            # Read from NI DAQ
            data = task.read(number_of_samples_per_channel=500)

            # Arrange data and send to Nominal Core
            timestamp = time.time()
            t0 = timestamp - 1/5000 * len(data[0])
            for i, ch_data in enumerate(data):
                core_stream.enqueue(
                    channel_name = task.channel_names[i],
                    timestamps = [t0 + j * 1/5000 for j in range(len(ch_data))],
                    values = ch_data
                )
    task.stop()

After: one API across vendors

Here’s the same workflow using instro’s InstroDAQ. The acquisition code is identical across vendors: change the driver and the rest stays the same. Capturing the data is one optional line (add_publisher(...)); drop it and the same script just reads into your process.

from instro.daq.drivers.labjack import LabJackTSeriesDriver
from instro.daq import InstroDAQ
from instro.daq.types import Direction
from instro.lib.publishers import NominalCorePublisher

DATASET_RID = "<your dataset rid>"

# Swap in NIDAQDriver/MCCDriver/Keysight34980A to target a different vendor.
daq = InstroDAQ(
    name="myDAQ",
    driver=LabJackTSeriesDriver(device_id="<your_device_id>"),
)
daq.add_publisher(NominalCorePublisher(dataset_rid=DATASET_RID))

daq.open()

daq.configure_analog_channel(
    direction=Direction.INPUT, physical_channel="AIN0", alias="ch_0", range_min=-10, range_max=10
)
daq.configure_analog_channel(
    direction=Direction.INPUT, physical_channel="AIN1", alias="ch_1", range_min=-10, range_max=10
)
daq.configure_ai_sample_rate(sample_rate=5000, samples_per_channel=500)

# Start the acquisition and launch a background daemon that fetches from the DAQ buffer
daq.start()

for _ in range(10):
    time.sleep(0.5)

daq.stop()
daq.close()

Key Concepts of instro

Code to an interface, not the specific instrument in use.
Configurable background daemons read and expose measurements to your script.
Optional data publishing to a file, a custom destination, or Nominal Core and Nominal Connect, by way of a customizable Publisher interface. Attach one when you want to capture data; skip it and instro is just an instrument-control library.

Two ways to get data

You can get measurements into your script in two ways. If a publisher is attached, both options publish data whenever a measurement is produced. The difference is who triggers the reads and how often.

	Background acquisition	On-demand acquisition
How	Call `start()`. A background daemon reads from the instrument at a fixed, configurable rate. Pull the latest N values with `get_channel()` when you need them.	Skip `start()`. Call read methods (`read_analog()`, `get_voltage()`, …) only when you want a measurement. Each call reads the device, and publishes the result if a publisher is attached.
Best for	Apps where data should always be available and publishing.	Apps that need measurements only at specific times; lower system and bus load. DMMs are a good example.

RecommendationUse the background daemon pattern for most workflows. Data is always available and publishing, and it often simplifies application code, especially for buffered acquisitions from a DAQ where you’d need to manage servicing a buffer yourself.Depending on your application, you may never need to call get_channel(), but the background daemon will always publish measurements for later analysis in tools like Nominal Core.

Instrument-specific pages (e.g. InstroDAQ) describe the exact methods and timing options for each type.

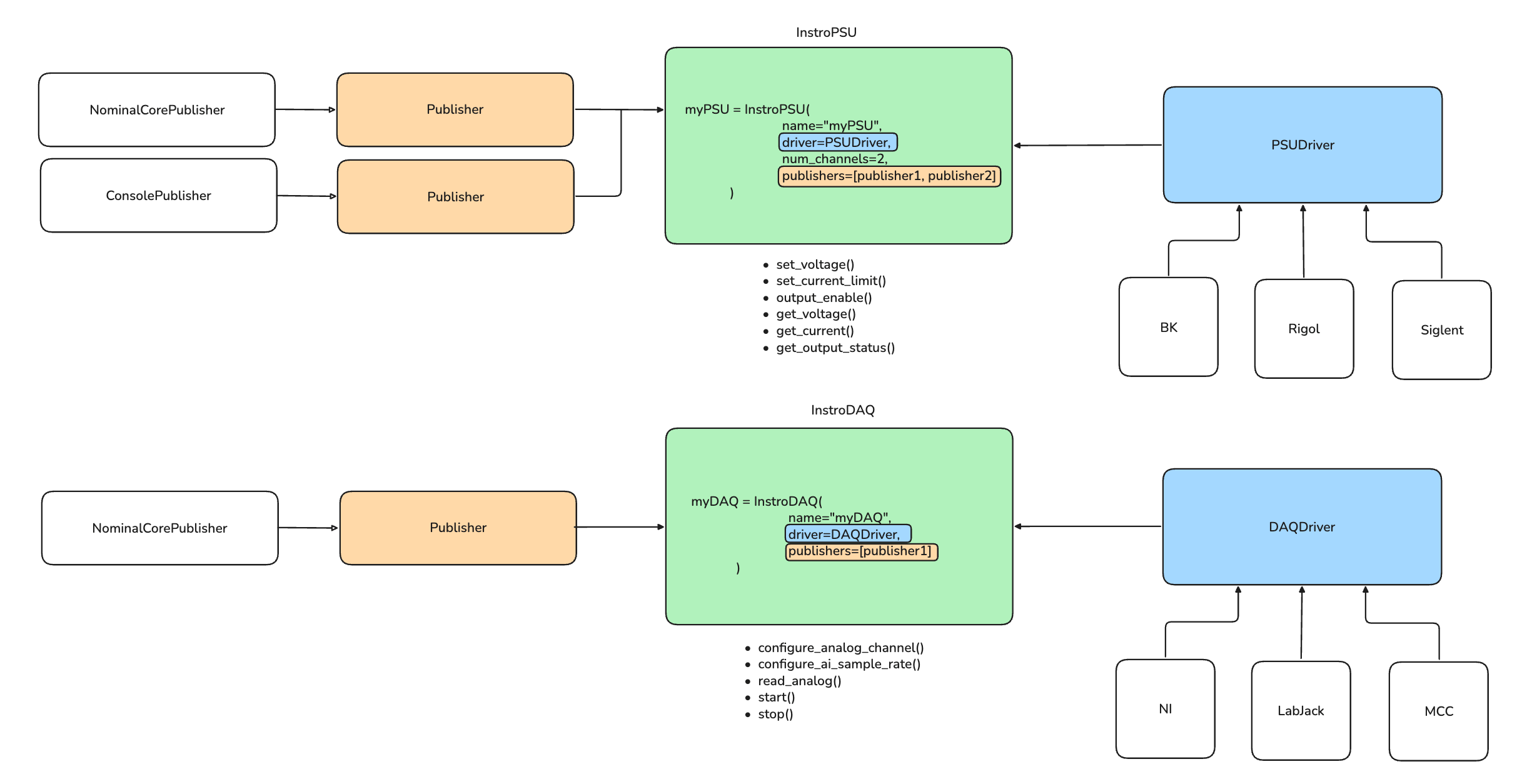

High Level Architecture

Instrument Types / HALs: Distinct classes for each type of instrument (e.g., DAQ, PSU, ELoad, I2C), each providing an opinionated and unified usage model. This design exposes a tailored interface that reflects typical usage patterns, making common workflows consistent across different vendors and models.
Drivers: Vendor- or model-specific drivers that handle low-level communication intricacies. HALs rely on these drivers to implement vendor- or model-specific details within the context of their higher level usage model.
Publishers: Components responsible for recording or transmitting instrument data and commands. For example, streaming measurement data to a dataset.

PublishersData is published as a direct result of an instrument method being called.For example, when you call InstroPSU.get_voltage(), this not only queries the instrument for the voltage but also causes all attached Publishers to publish the measurement response automatically.This makes it easy to ensure measurements and state changes are consistently recorded or streamed without explicitly managing yourself.

Instrument Types

These are the instrument types available out of the box.

InstroPSU: programmable Power Supplies
InstroDAQ: data Acquisition devices
InstroELoad: electronic Loads
InstroDMM: digital Multimeters
InstroScope: oscilloscopes
I2CInterface: I2C master for communicating to peripherals on an I2C bus
ModbusDevice: Modbus register/coil device (TCP or RTU)
EtherNetIPDevice: EtherNet/IP and CIP devices, via instro.ethernetip (install with instro[ethernetip])

Drivers

These are the vendor/model-specific drivers available out of the box.

InstroPSU
- B&K Precision
- Keysight
- Siglent
- Rigol
- TDK Lambda
InstroDAQ
- National Instruments (NI)
- LabJack T-Series
- Measurement Computing (MCC)
- Keysight 34980
InstroELoad
- B&K Precision 85xx Series
I2CInterface
- Total Phase Aardvark
InstroDMM
- Keithley 2400
- Agilent/HP/Keysight 34401A
InstroScope
- Keysight 1200X
- Tektronix 2-Series
- Siglent SDS1000X-E

Publishers

These are the publishers available out of the box.

NominalCorePublisher: sends data to a Nominal Core dataset
NominalConnectPublisher: sends data to a Nominal Connect client
FilePublisher: writes data to a local file in Avro, CSV, or JSON Lines

BasicBufferedPublisher and QueuedPublisher wrap any of the above to add in-memory batching or non-blocking background delivery. See Publishers for configuration and examples.
